Bacula backup tool installstion (open source)

Reference:

Bacula測試紀錄

How to Setup Backup Server Using Bacula And Webmin in CentOS

企业级的开源备份工具Bacula之配置



(這方法裝起來的Bacula是5.2.13版，和bacula.org上的版本落差頗大)



步驟：

• 安裝 CentOS 7
• yum install -y bacula-director bacula-storage bacula-console bacula-client mariadb-server
• vi /etc/sysconfig/selinux
• SELINUX=disabled
•  setenforce 0
• systemctl start mariadb
• systemctl enable mariadb
• 調整為mysql
• alternatives --config libbaccats.so
• Enter to keep the current selection[+], or type selection number: 1



•  /usr/libexec/bacula/grant_mysql_privileges
• /usr/libexec/bacula/create_mysql_database -u root
• /usr/libexec/bacula/make_mysql_tables -u bacula
• mysql_secure_installation
• 剛裝好預設密碼是空的


•  mysql -u root -p
• UPDATE mysql.user SET password=PASSWORD("password") WHERE user='bacula';
• FLUSH PRIVILEGES;
• exit
• Configure Bacula Director
• vi /etc/bacula/bacula-dir.conf
• 修改Password, Address (192.168.12.x), dbpassword
• bacula-dir -tc /etc/bacula/bacula-dir.conf
• Configure Bacula Storage
• mkdir /home/backup
• chown bacula:bacula /home/backup
• vi /etc/bacula/bacula-sd.conf
• 修改Password, Archive Device = /home/backup
• bacula-sd -tc /etc/bacula/bacula-sd.conf
• Configure Bacula Console
• vi /etc/bacula/bconsole.conf
• 修改Password
• bconsole -tc /etc/bacula/bconsole.conf
• Configure Bacula file daemon
• vi /etc/bacula/bacula-fd.conf
• 修改Password
•  bacula-fd -tc /etc/bacula/bacula-fd.conf
• start all bacula daemons
• systemctl start bacula-dir
• systemctl start bacula-fd
• systemctl start bacula-sd
• systemctl enable bacula-dir
• systemctl enable bacula-fd
• systemctl enable bacula-sd
• yum install wget -y
• 安裝webmin (https://sourceforge.net/projects/webadmin/files/webmin/)
•  wget https://sourceforge.net/projects/webadmin/files/webmin/1.981/webmin-1.981-1.noarch.rpm --no-check-certificate
• yum install webmin-1.981-1.noarch.rpm -y
• service webmin status
• chkconfig webmin on
• 調整 firewalld，開放port 10000 (webmin)
• firewall-cmd --zone=public --add-port=10000/tcp --permanent
• firewall-cmd --reload
• 連上管理網頁
• https://IP-address:10000
• System / Bacula Backup System

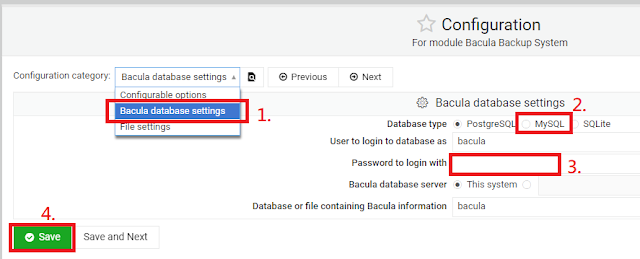

• Click on “ Module Configuration” link


• Select the database type and fill the bacula database user and password

• Label Volume

接下來就可以測試backup了。
